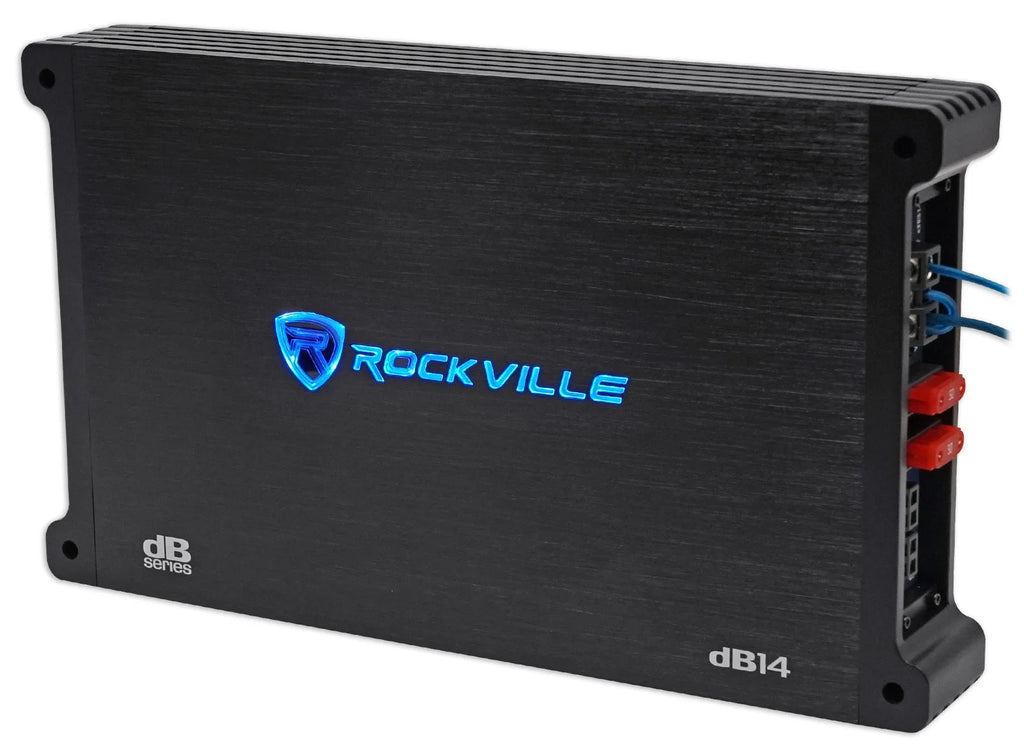

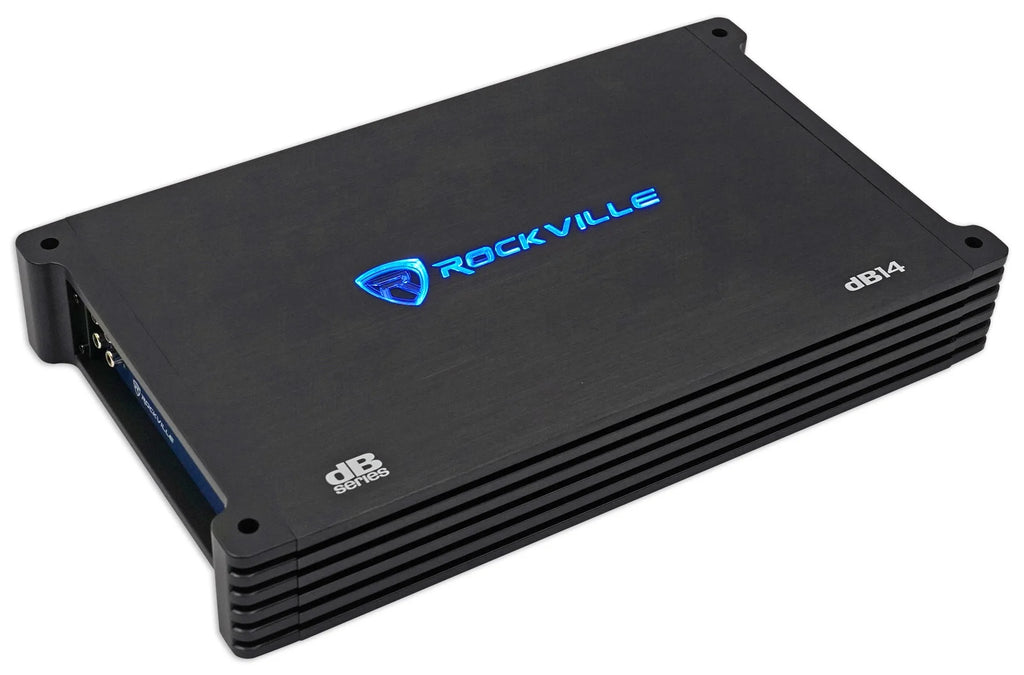

Db14 4000W Peak/1000W RMS Mono 2 Ohm Amplifier Car Audio Amp

Video of dB14:

Description:

The dB14 is a mono amplifier with 4,000 watts peak output and 1000 watts Dyno Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.

One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %. The dB14 features a Maxi fuse with a rating of 100 Amps. Although we rate these conservatively at 1000 watts Dyno Certified RMS @ 2 ohms, this amplifier puts out more power than this!

Includes:

Features:

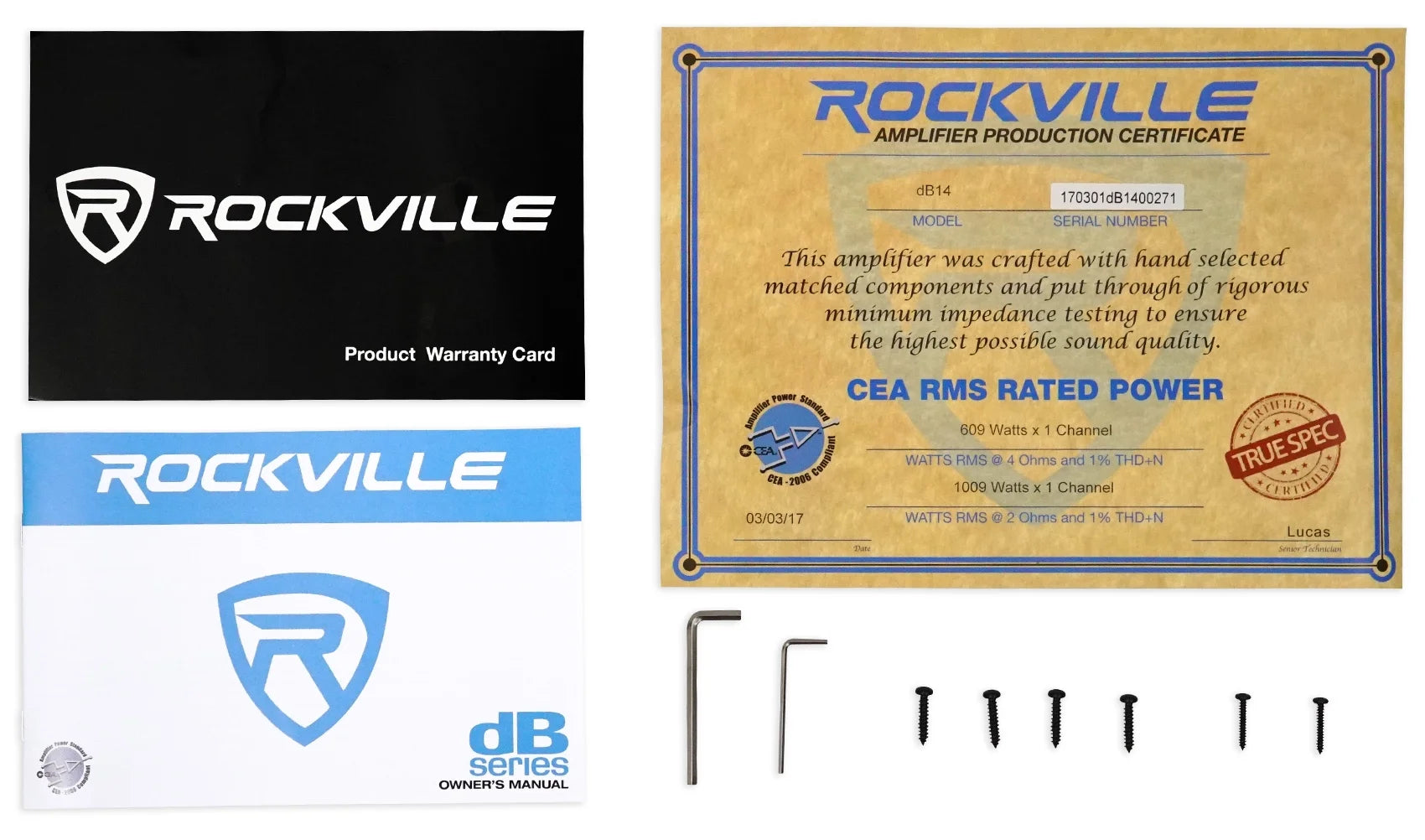

• Includes: Amplifier. Bass Remote. Birth sheet with tested power. Owner’s manual. Mounting Screws. Warranty.
• Rockville dB14 4000 Watt Peak/1000 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp. Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc). - 2 Ohm: 1000 Watts x 1 Channel <1% THD+N. - 4 Ohm: 600 Watts x 1 Channel <1% THD+N.

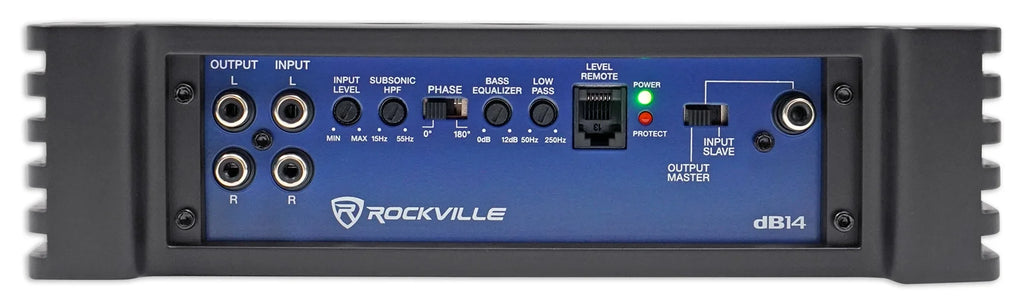

• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc). - 2 Ohm: 4000 Watts x 1 Channel. - 4 Ohm: 2400 Watts x 1 Channel. High-Speed MOSFET Power Supply. Optical Coupler Class “D” Technology. Fully Adjustable 12dB / Octave Crossover with Differential Circuitry. Low Pass Filter: 50Hz - 250Hz.

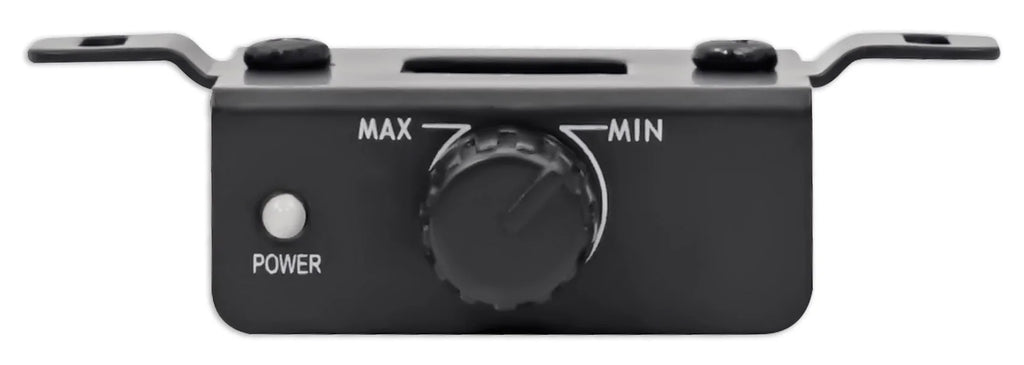

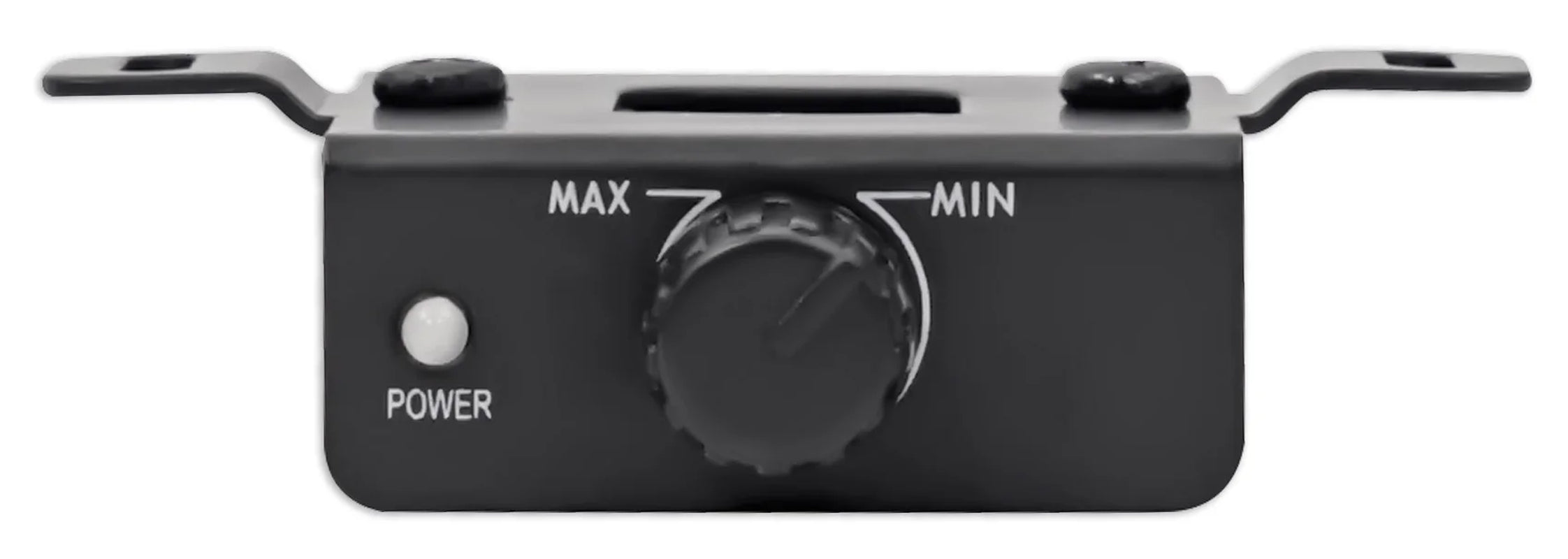

• Subsonic Filter: 15Hz - 55Hz. Phase Control Switch. Full IC-Controlled Protection Circuitry. Remote Dashboard Subwoofer Control. Fully Adjustable 12dB Bass Equalizer. Mute and Delay Soft Start System. RCA Preamp Line Output. 8 Volt Preamp Circuitry. Status Mode LED Indicator. Minimum THD at Rated Power: <0.1%. S / N Ratio: >90dB. Under Voltage Protection at 10V. Over Voltage Protection at 16V.

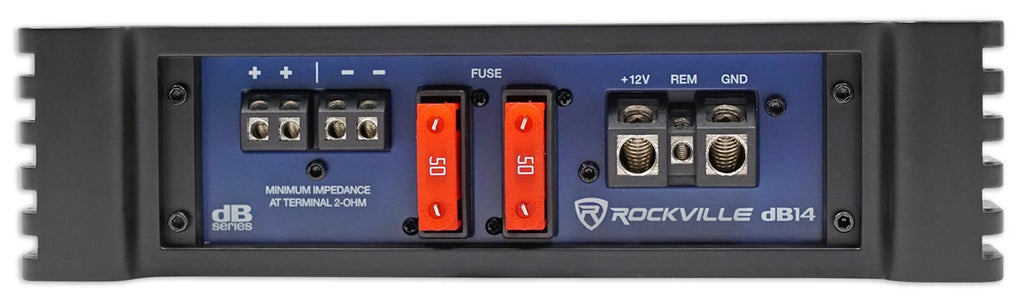

• Frequency Response: 15Hz - 250Hz. Damping Factor: >150 @ 100Hz. 100 Amp Maxi Fuse. Dimensions: (W x H x L) 9" x 2.4" x 15.5"
