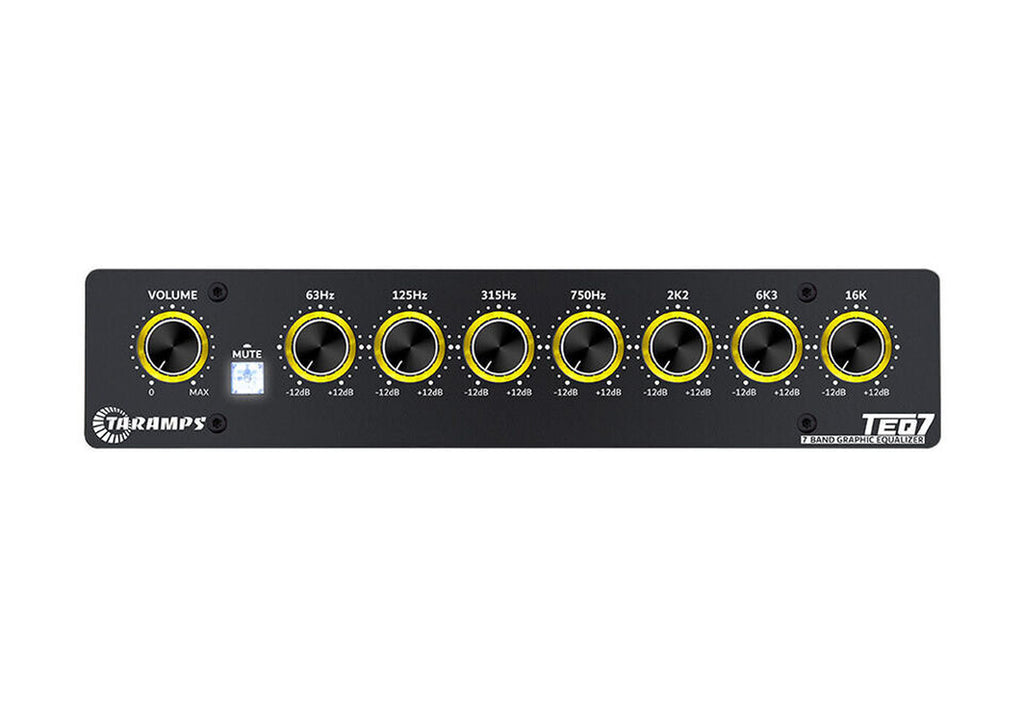

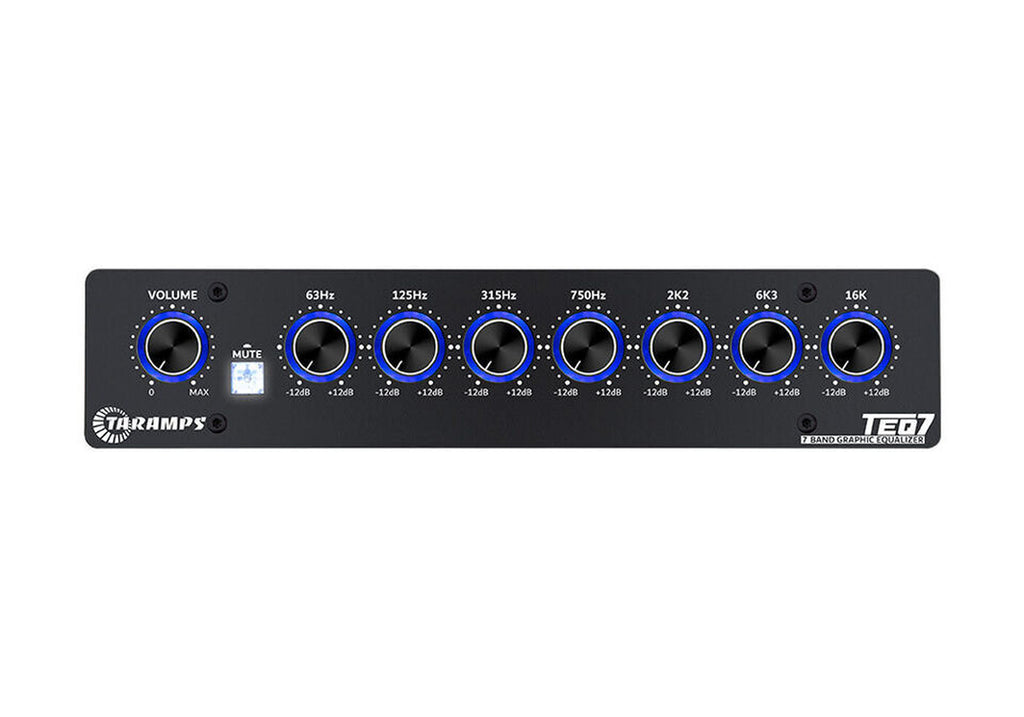

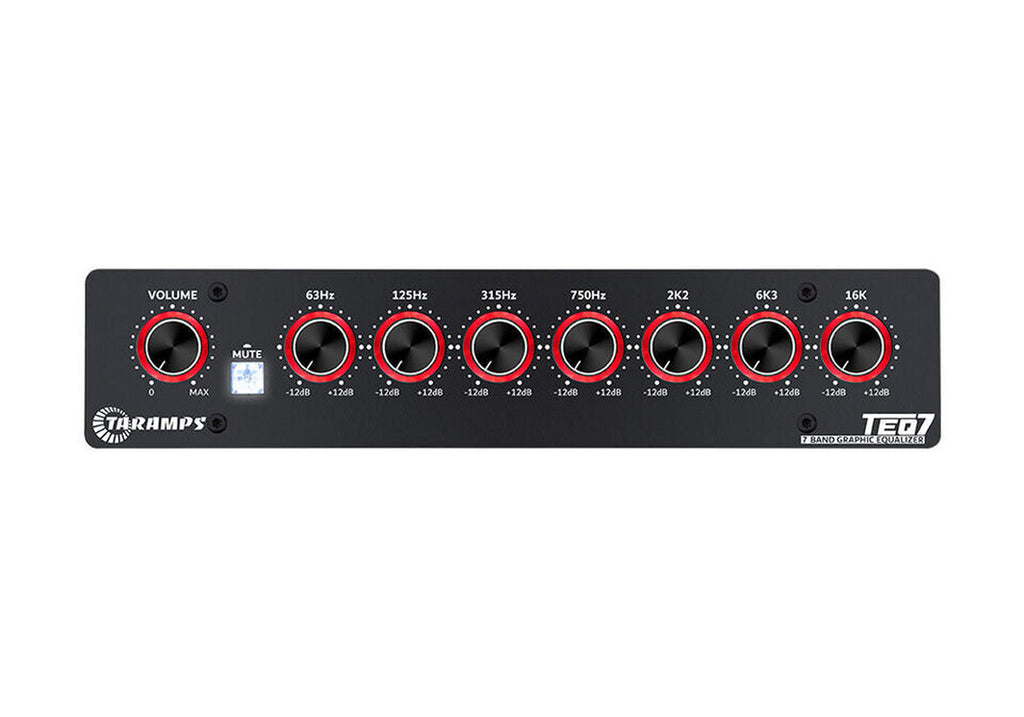

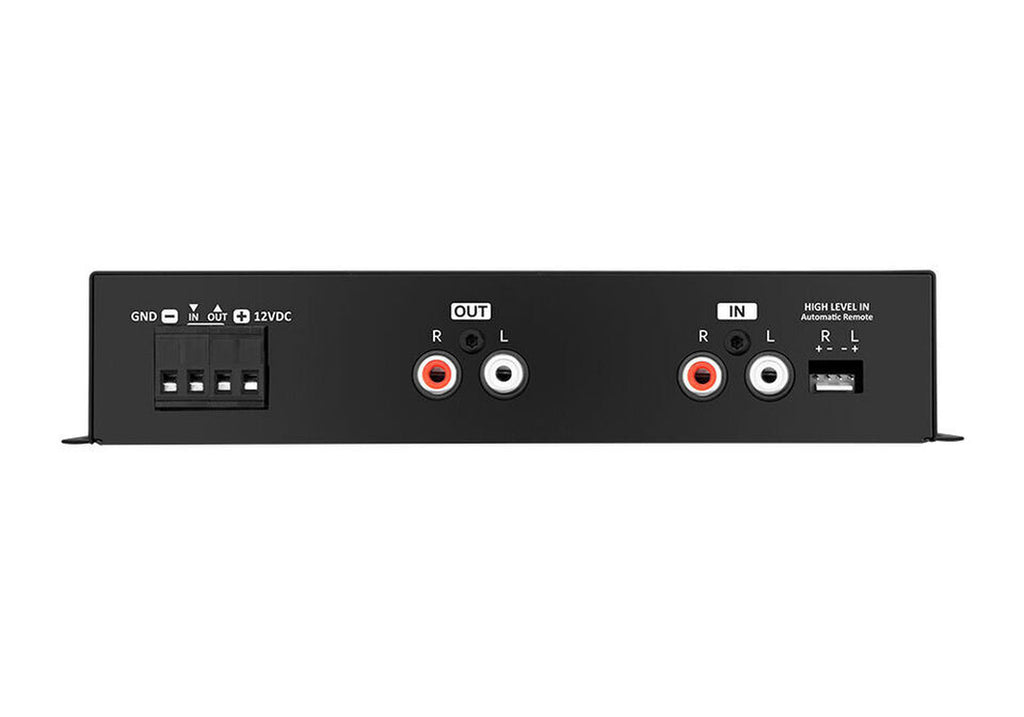

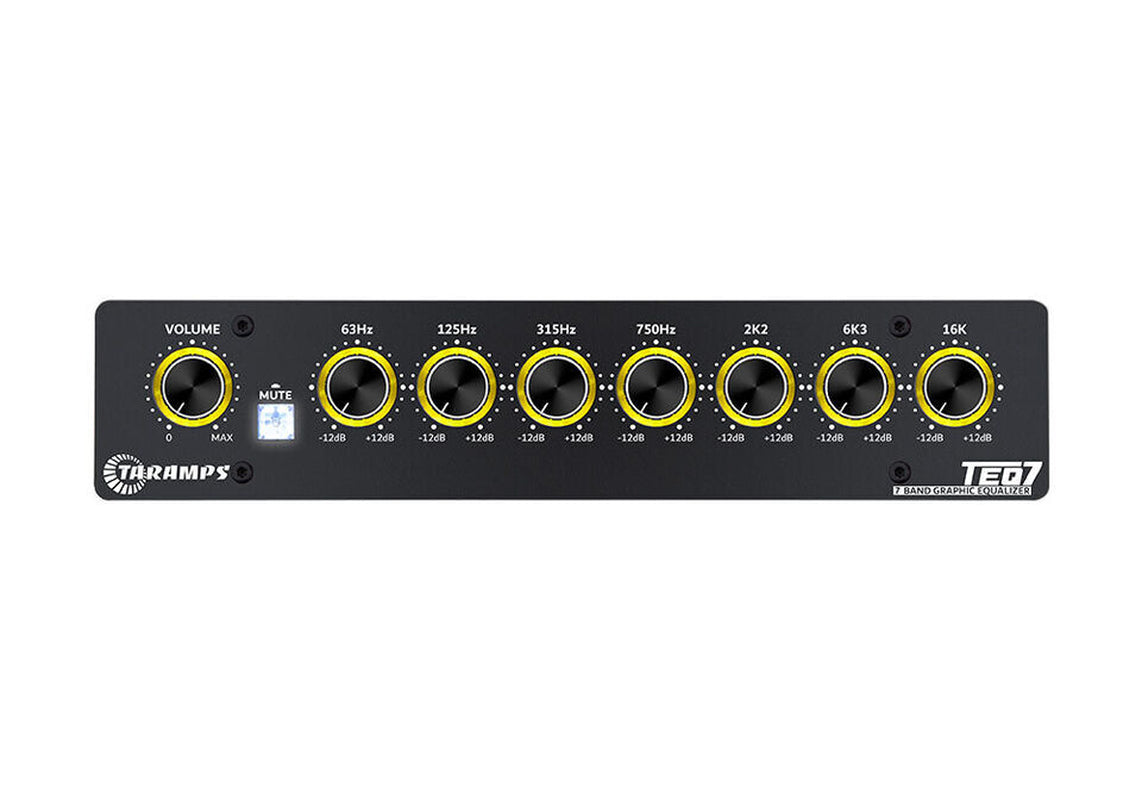

Taramps TEQ 7 Stereo 7-Band Graphic Equalizer RCA Input 2 Channels Car Audio
$68.34
The TEQ 7 is a stereo 7-band graphic equalizer designed to enhance your listening experience.
With its compact design, the TEQ 7 easily fits into any 12V powered car audio system, providing a noticeable upgrade in quality. Its 7 bands of equalization have been carefully developed to guarantee precise and efficient control of audio frequencies, allowing you to adjust the sound according to your personal preferences. In addition, the TEQ 7 has audio input via RCA and High Level audio input with automatic activation, HPF and LPF filters, and an Anti-Pop system, which prevents unwanted “pops/noises” when turning the sound system on and off. It is available in three lighting options: Red, Blue or Yellow, so you can choose the one that best suits your vehicle’s aesthetics or your own style.
Experience the power of the TEQ 7 and customize your sound experience.
With its compact design, the TEQ 7 easily fits into any 12V powered car audio system, providing a noticeable upgrade in quality. Its 7 bands of equalization have been carefully developed to guarantee precise and efficient control of audio frequencies, allowing you to adjust the sound according to your personal preferences. In addition, the TEQ 7 has audio input via RCA and High Level audio input with automatic activation, HPF and LPF filters, and an Anti-Pop system, which prevents unwanted “pops/noises” when turning the sound system on and off. It is available in three lighting options: Red, Blue or Yellow, so you can choose the one that best suits your vehicle’s aesthetics or your own style.
Experience the power of the TEQ 7 and customize your sound experience.
TECHNICAL INFORMATION
| NÚMERO DE CANAIS DE ENTRADA | 02 |
|---|---|
| NÚMERO DE CANAIS DE SAÍDA | 02 |
| AJUSTE DE GANHO GERAL | -40 to +6dB |
| IMPEDÂNCIA DE ENTRADA (RCA) | 10K Ohms |
| IMPEDÂNCIA DE ENTRADA (FIO) | 56 Ohms |
| OUTPUT IMPEDANCE | 100 Ohms |
| NÍVEL MÁXIMO DE ENTRADA (RCA) | 28.28Vpp (10V RMS) |
| NÍVEL MÁXIMO DE ENTRADA (FIO) | 30.54Vpp (10.8V RMS) |
| MAXIMUM OUTPUT LEVEL | 28.28Vpp (10V RMS) |
| RESPOSTA DE FREQUÊNCIA (-1DB) | 6Hz to 50KHz |
| TOTAL HARMONIC DISTORTION | 0.01% |
| RELAÇÃO SINAL / RUÍDO | 0.01% |
| CROSSTALK (SEPARATION BETWEEN CHANNELS) | >80dB/1KHz |
| EQUALIZADOR GRÁFICO, 7 BANDAS | Frequencies: 63, 125, 315, 750, 2.2K, 6.3K, 16KHz Attenuation / Gain: -12dB a +12dB Q factor: 1.414 |
| CROSSOVER (HPF E LPF) | Frequency cut: Selectable between 100Hz, 1KHz and 10KHz Filtros Butterworth: -12dB/Octave |
| FUNÇÃO DE MUTE GERAL | Yes |
| POWER SUPPLY VOLTAGE | 9 to 16VDC |
| CONSUMO NOMINAL (12,6V) | 0.380A |
| DIMENSÕES(LXAXP) | 8.07" x 1.57" x 4.09" (205 x 40 x 104 mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| EAN | Yellow: 7898556849807 Red:7898556849784 Blue: 7898556849791 |
