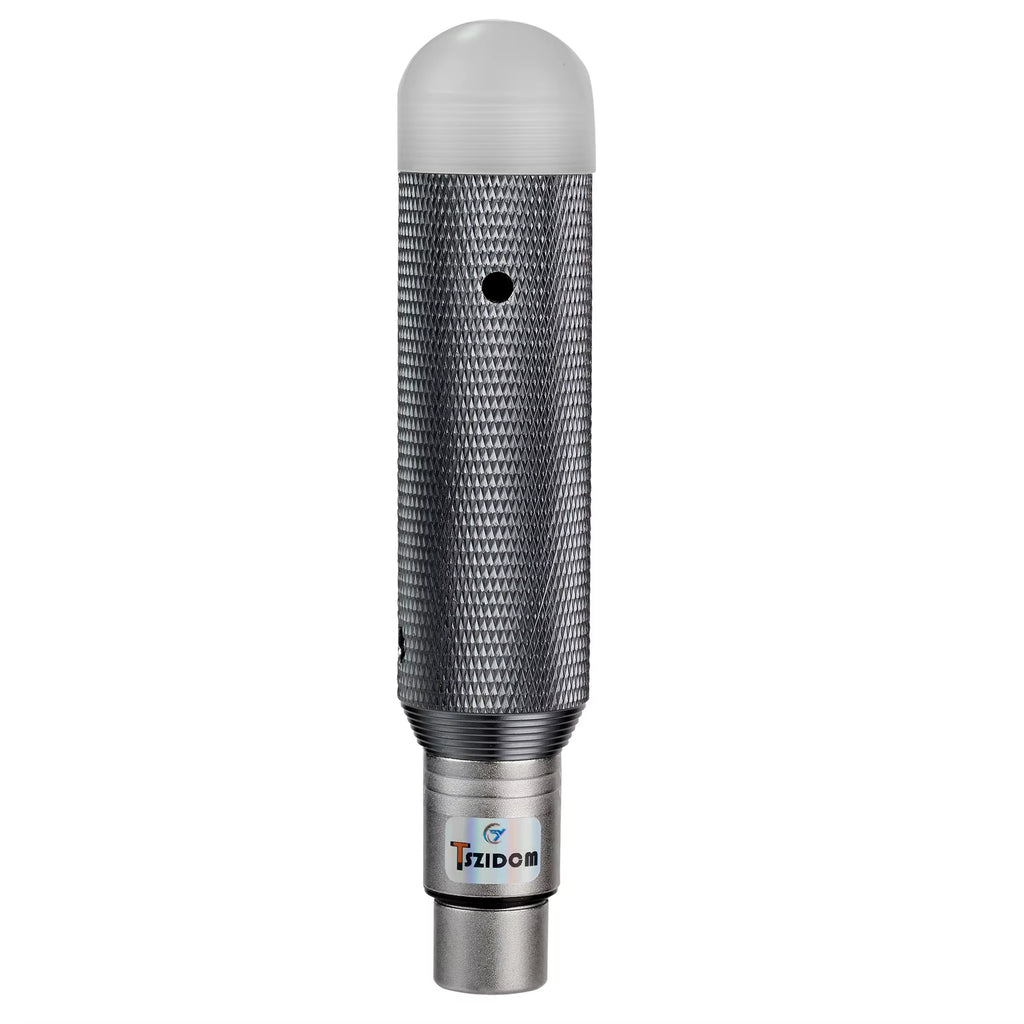

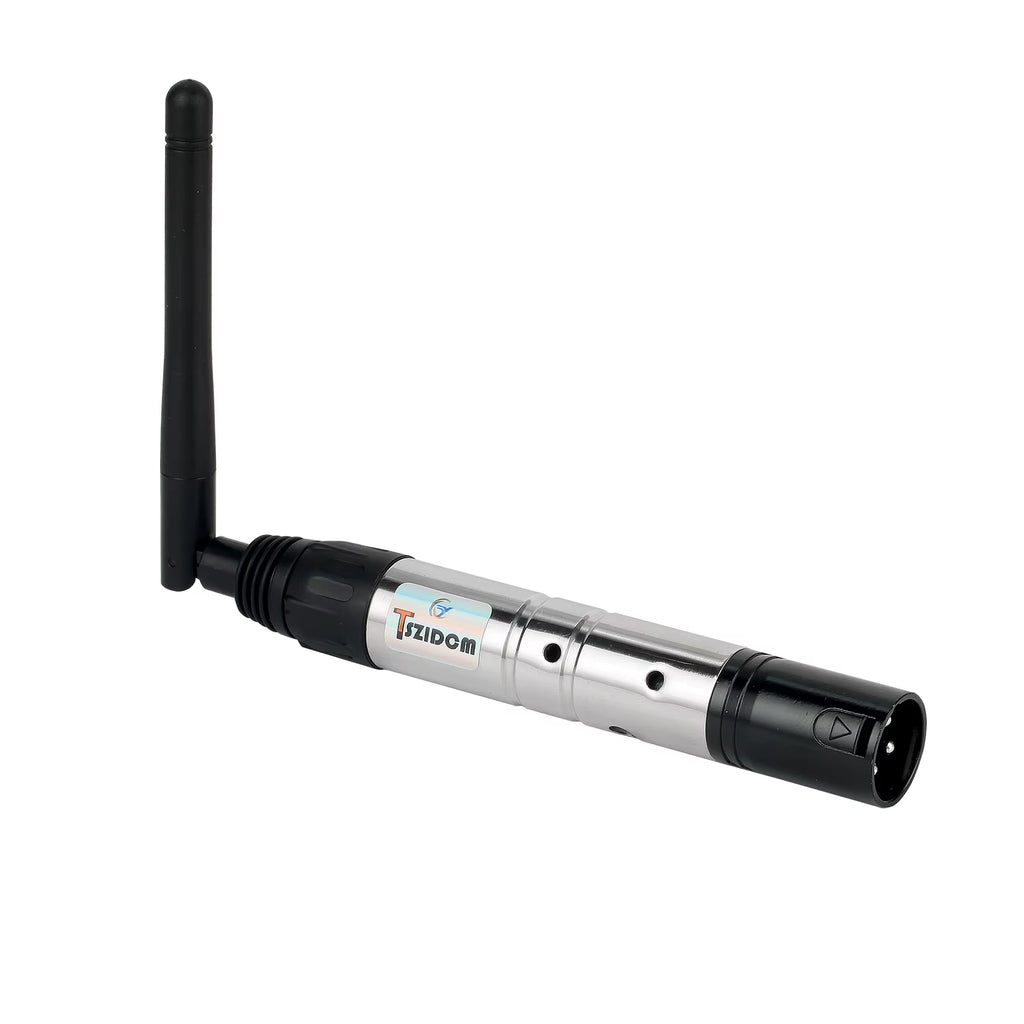

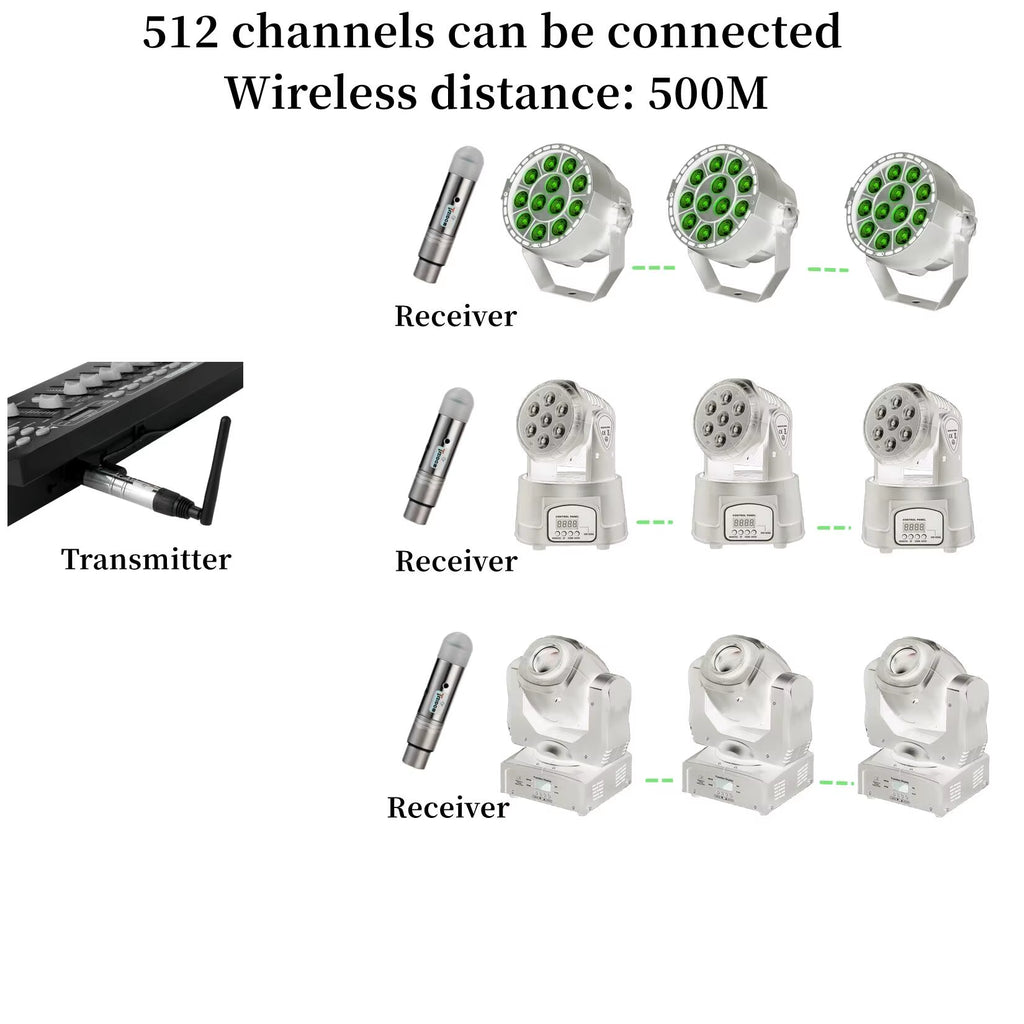

Wireless DMX 512 System 2.4G Wireless Female Receivers/Male Transmitter LED DMX512 DMX Dfi DJ Lighting Dmx Controller

Specification:

Specification:

1. 2.4G wireless DMX512 R/T

2. 126 channels jumping frequency automatically, high anti-jamming ability. to ensure works reliability

3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere

4. each other in the same place...(Tricolor LED displaying Indicators)

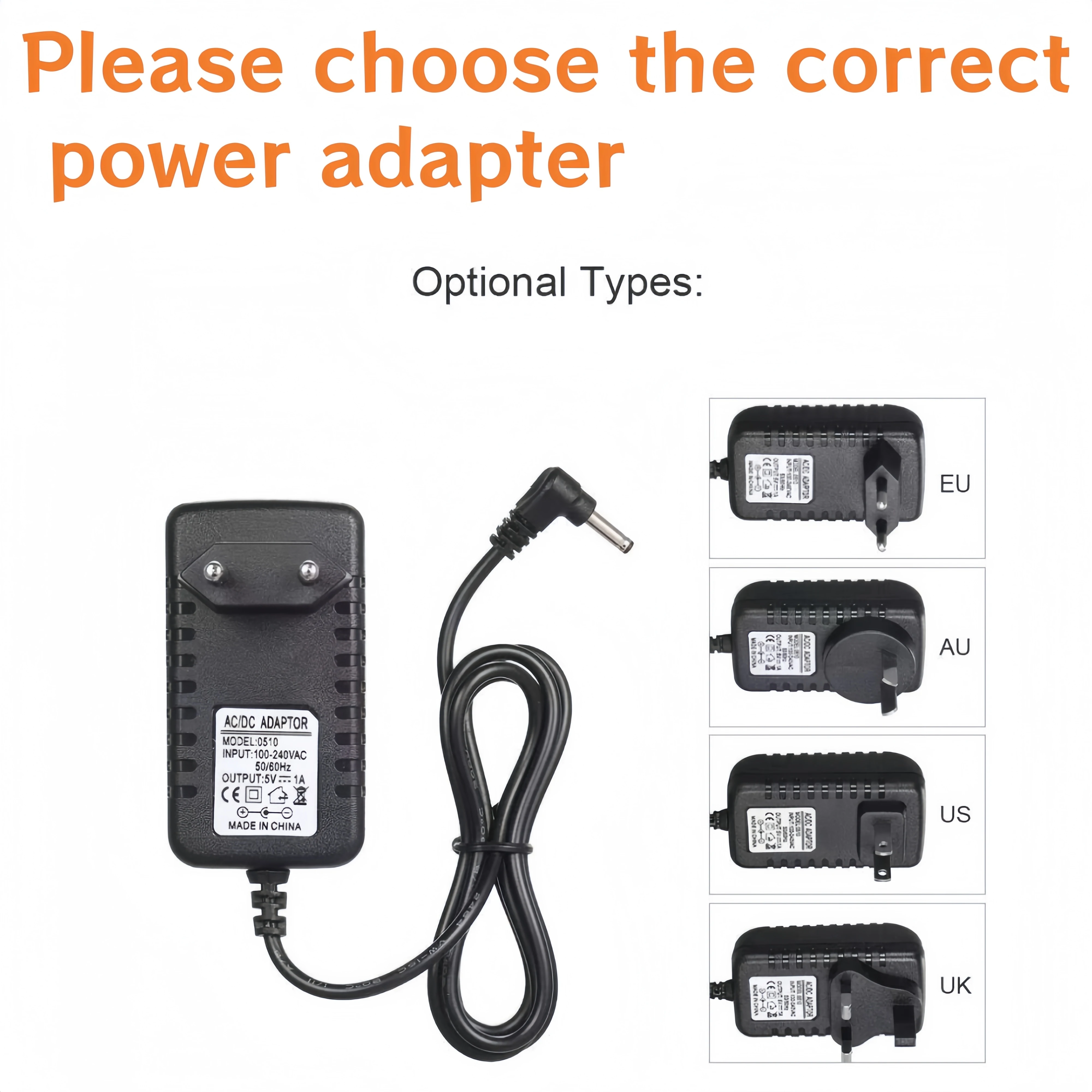

5. Input voltage:5VDC 500mA MIN

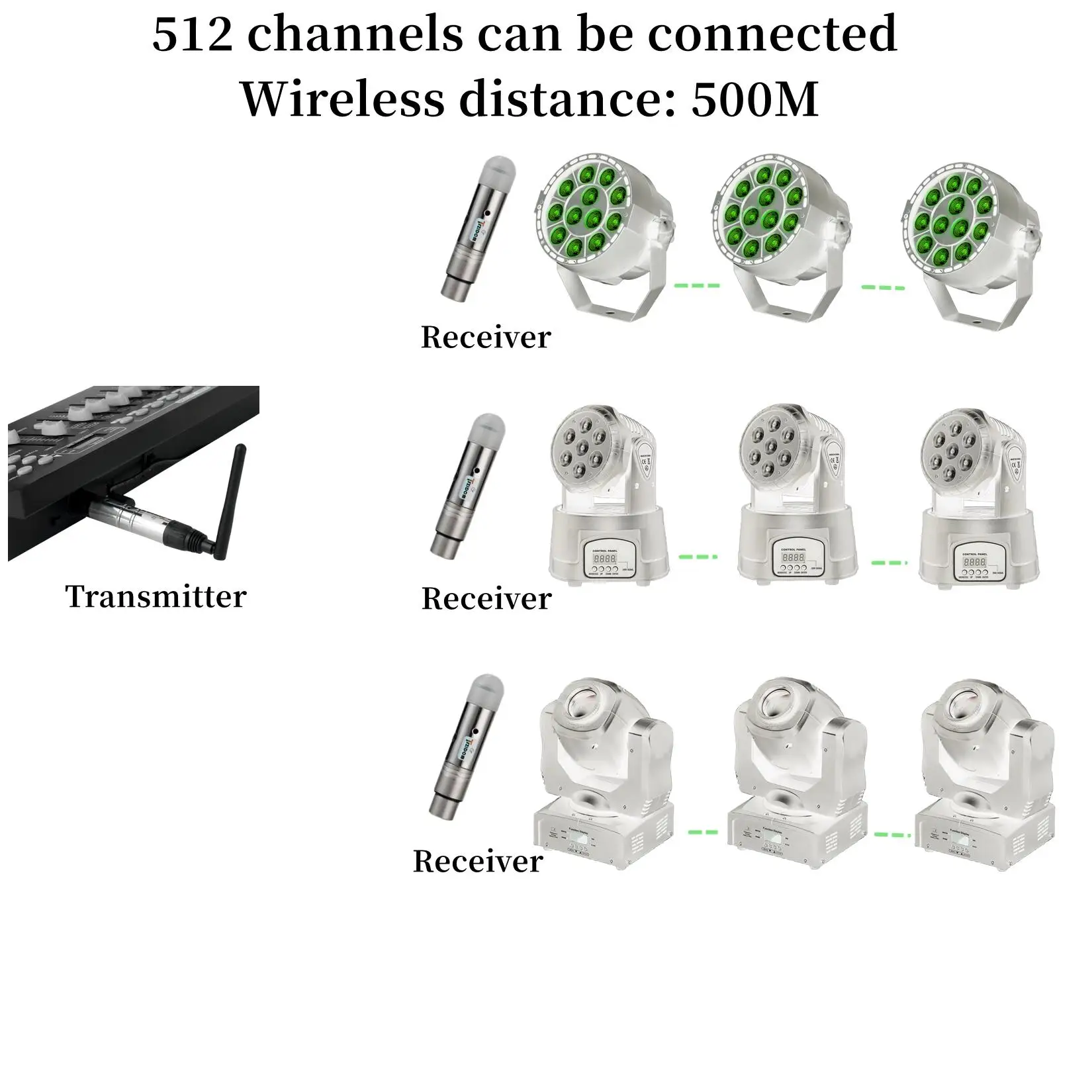

6. Communication distance: 500M (visible distance)

7. Work frequency section: 2.4G ISM,126 channels.frequency section

8. Max transmitting power rate:20dB
Operating manual:
ID code and LED color corresponding relationship:
1: RED 2: GREEN 3: RED+GREEN 4: BLUE 5: RED+BLUE 6: GREEN+BLUE 7: RED+GREEN+BLUE

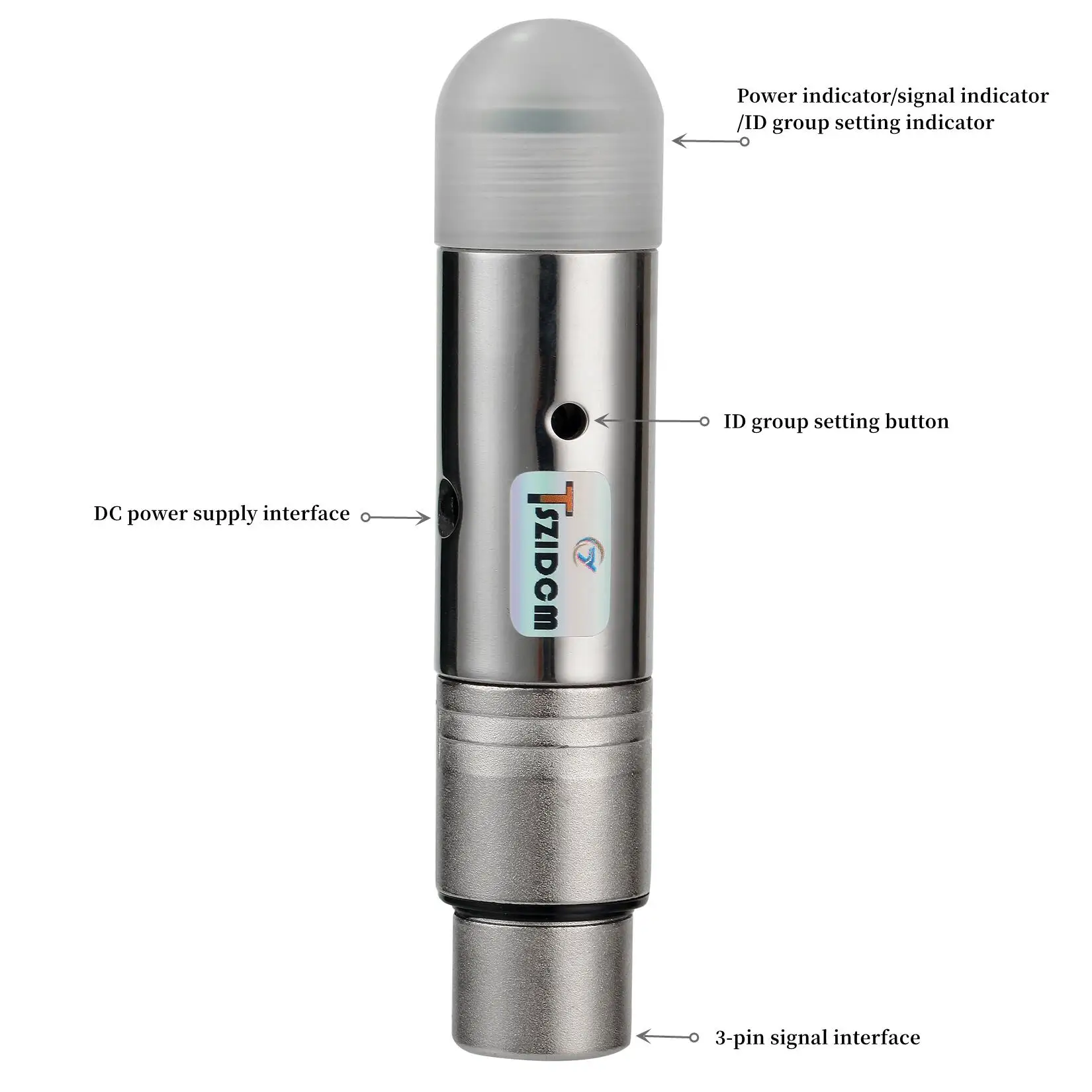

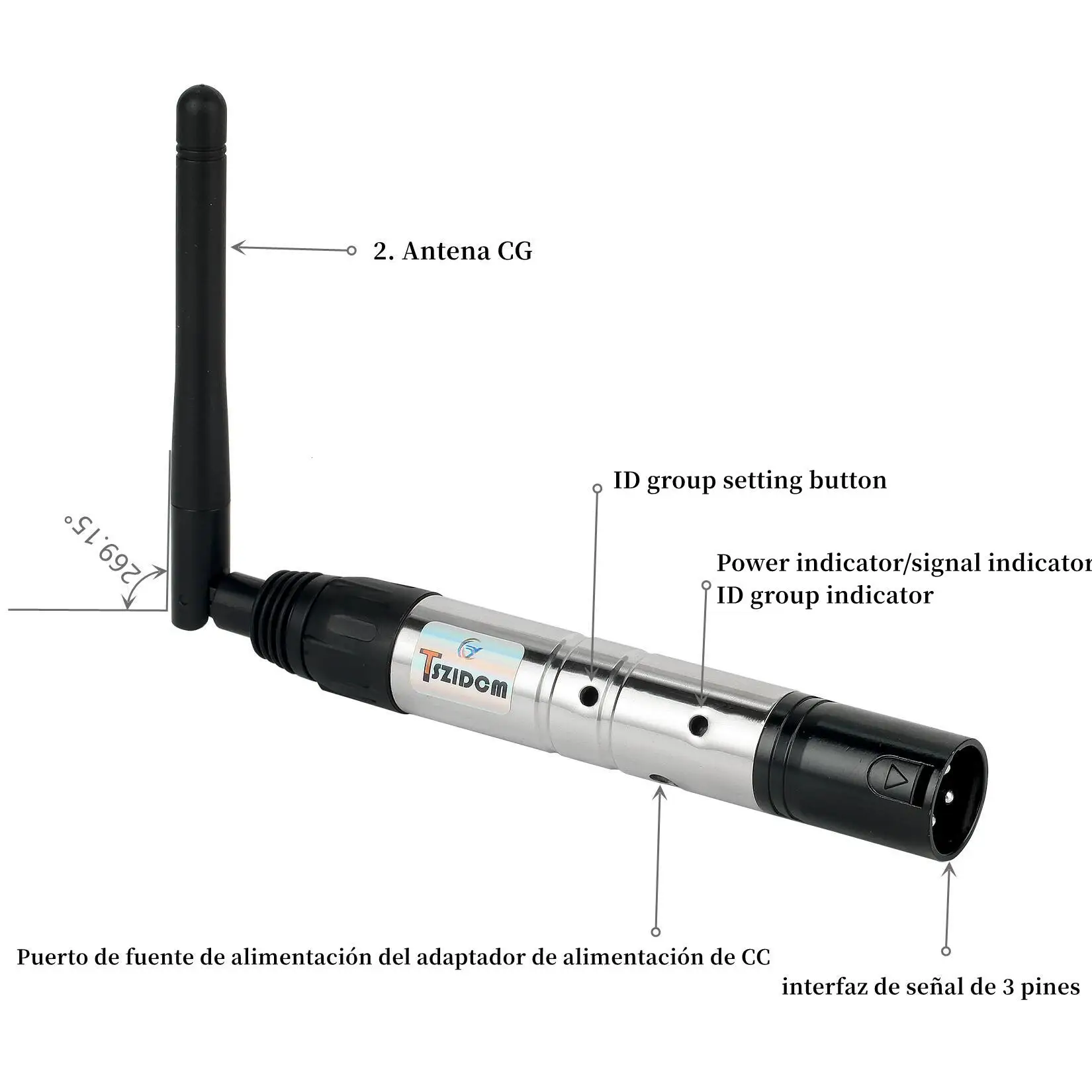

ID Setting
1. Press momentary switch above the side led indicator to indicate ID setting2. Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.

Working condition:
LED constant lit up: No DMX or wireless signal.Red LED flash: Transmitting.Green LED flash: Receiving

FAQ

Q : Can I use this with microphones ? Can I use to make the microphones wireless ?

A : No....this is for wireless DMX control of lights not audio .

Q : Does it have a 5 pin adapter for connecting to the DMX port on a lighting console?

A : It is a 3-Pin. If you need 5-Pin, you can contact SZWIYXE customer service .

Q : How many DMX addresses can be sent thru one transmitter and one receiver?

A : there are 7 channels for the SZWIYXE and they are colored red green purple blue and so on. The transmitter needs to match the color using on all receivers.

Q : Have receiver buld-in battery?

A : no , this type need power supply ,If you need a built-in battery, you can contact SZWIYXE customer service.
